User Guide for the installation of the databox


24/7 support Tel: +31 643 804 915

24/7 support Tel: +31 643 804 915



Prequisites

  1. Install the wibukey software for the USB dongle

  2. Install Java 32 bit update

  3. Install Motorola Solutions CPS (v16.0, Build 828 , 5 dec 2018)

  4. Update CPS with the DM4400e firmware, or MTM54000

  5. Install CPTT software version 1.50

  6. Buy a CPTT license with USB dongle (optional)

  7. Install USB/RS232 - Brainboxes drivers, Win7 32&64

  8. (temp) Install the USB/RS232 - CH340 drivers

  9. Install a terminal software, for eg. Real Terminal

  10. Download the Mototrbo Radio Sample configuration files

  11. Configure & Power the two DMR radios using CPS

Step 1 - Cable layout

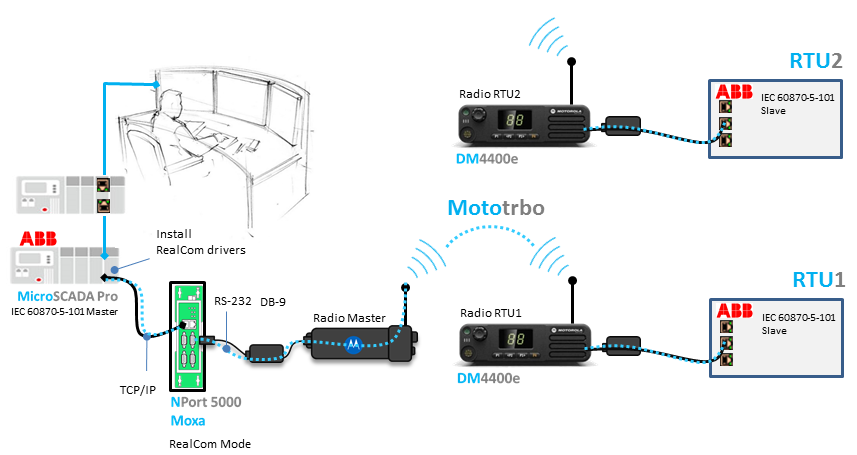

Establish the following cable layout (below)



Step 2 - Configure  USB/RS232 port

-Connect the USB / RS232 adaptor to the controlling station.
-Connect the USB / RS232 adaptor to the controlled station. Update Windows driver when necessary.
-Identify COM port using the Windows device manager of the controlling station.
-Set-up the COM route inside the Controlling Station & Controlled Station.

Step 3 - Configure the IEC 101 - Master/Slave

-Configure the IEC101 connection profile inside the SCADA Master or Master Emulation (controlling station).
-Configure the IEC101 connection profile inside the SCADA Slave or Slave Emulation (controlled station).
-Establish a succesfull IEC101 connection connecting to controlling station or controlled station.

STEP 4- HOW TO BUILD THE INFRASTRUCTURE?

-Configure the control room radio for GroupCalling by setting-up the Radio ID 12.0.0.1 and Group: 255.0.0.10
-Configure the remote stations' radios to ID 12.0.0.1, 12.0.0.2, ... 12.0.0.n and the group ID 255.0.0.10




The control room data-box can now be set-up to talk to the group using the transparent mode and the following AT command:

AT+AUTO=255.0.0.10, 4096,50<CR>

The remote stations databox should be set-up to always answer using direct calling to the control room radio with the AT command:

AT+AUTO=12.0.0.1, 4096,50<CR>


infrastructure ICE101



Step 5 - TROUBLESHOOTING

-Run the terminal software using (com#, baud rate 9600, databit 8, parity none, stop bits 1, handshaking none).

  • Troubleshoot the cable layout

  • Troubleshoot the data box

  • Troubleshoot the radios

  • Troubleshoot the controlling station

  • Troubleshoot the controlled station



STEP 6 - Introducing an Ethernet / Serial converter (optional)

- Configure the Moxa NPort 5000 series. Using the N Port Administrator Suite or the PComm Terminal Emulator for Win7 x64 and read the User Manual.

moxa NPort
